Roof drains

A roof drain with hot dip galvanised iron grates for conventional run-off collection. Suitable for flat roof, car parks and similar areas.

Roof Drains Features
1Sheradised iron grates provide an extremely hard wearing anti-corrosive finish

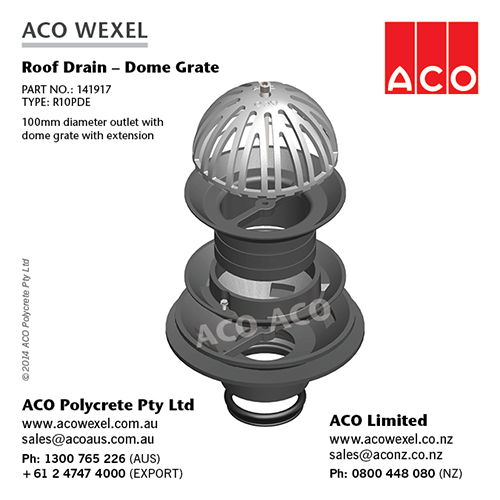

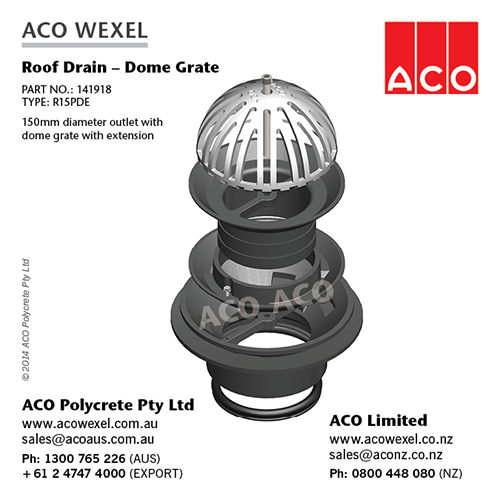

2Domed grates offer superior inflow in areas with high levels of debris
3Flat grates are used for applications where traffic is expected
4Extension piece to suit finished roof levels
5Membrane clamp ring to preserve integrity of roof waterproofing

Roof Drain Flat Grates
Part No. Description Wgt kg JPG DWG PDF
141905 100mmØ outlet with 250mmØ light duty flat grate. Load Class L15 13.2 JPG DWG PDF
141906 100mmØ outlet with 250mmØ heavy duty flat grate. Load Class R50 14.2 JPG DWG PDF
141907 100mmØ outlet with 250mmØ extra heavy duty flat grate1 Load Class M125 14.9 JPG DWG PDF
141908 150mmØ outlet with 250mmØ light duty flat grate Load Class L15 15.1 JPG DWG PDF
141909 150mmØ outlet with 250mmØ heavy duty flat grate Load Class R50 16.1 JPG DWG PDF
141910 150mmØ outlet with 250mmØ extra heavy duty flat grate1. Load Class M125 16.9 JPG DWG PDF
141911 100mmØ outlet with 250mmØ light duty flat grate with extension. Load Class L15 19.6 JPG DWG PDF
141912 100mmØ outlet with 250mmØ heavy duty flat grate with extension. Load Class R50 20.6 JPG DWG PDF
141913 150mmØ outlet with 250mmØ light duty flat grate with extension. Load Class L15 21.7 JPG DWG PDF
141914 150mmØ outlet with 250mmØ heavy duty flat grate with extension. Load Class R50 22.7 JPG DWG PDF

Notes:
1. Membrane clamp ring not available for extra heavy duty grate
2. Body and grate assemblies are also sold separately, contat ACO
3. All dimensions are in mm

flat roof drains grates plan view
